Excelsys introduces CoolX600 power supply with medical safety approvals

November 22, 2016
By Manufacturing AUTOMATION

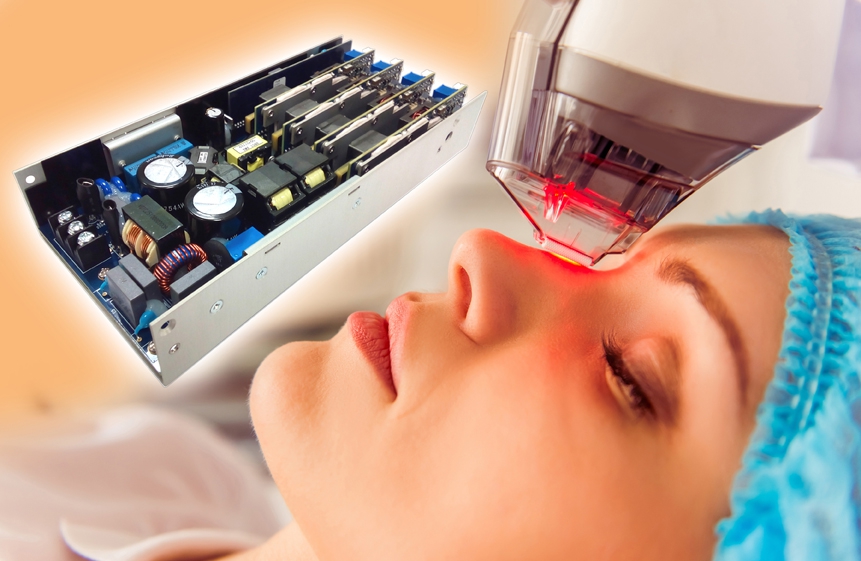

Nov. 22, 2016 – The CoolX600 convection-cooled modular power supply from Excelsys Technologies delivers 600 watts of output power without using fan-assisted cooling.

According to the company, it is the only fanless modular power supply on the market to meet medical safety approvals. Based on Excelsys’s modular resonant technology, the series boasts “best-in-class efficiency and reliability in addition to the most comprehensive feature set and specifications available.” The CoolX600 is fully safety certified to IEC60601-1 3rd edition and IEC60601-1-2 4th Edition (EMC) for medical applications. Key medical features include BF rating (Body Floating), dual fusing, 2 x MOPP and <300uA leakage current. Other features include 4KV input surge immunity, the ability to withstand input voltages of up to 300VAC, 94-per-cent efficiency, and 24W standby power outputs (5V or 12V). It also enables analogue and digital management with optional PMBus monitoring and control capability, and is user-field-configurable with plug-and-play power.
